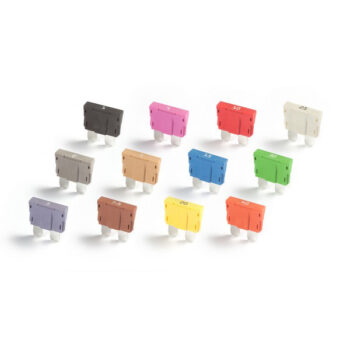

normOTO Fuse F1800

  • Blade rigidity through robust/sturdy body construction
  • Application specific EU developed melting element
  • Blade material: Cu, Sn plating
  • Color coded body materials, rating marked on top using OCR font
  • Self extinguishing (UL 94V0) 25% GF body materials
  • Suitable for use in low voltage applications up to 80Vdc
SKU: F1801, F1802, F1803, F1804, F1805, F1875, F1810, F1815, F1820, F1825, F1830, F1840 Category:

Description

F1800 normOTO blade fuse series 80VdcnormOTO Fuse F1800 Collection

  • Blade rigidity through robust/sturdy body construction
  • Application specific EU developed melting element
  • Blade material: Cu, Sn plating
  • Color coded body materials, rating marked on top using OCR font
  • Self extinguishing (UL 94V0) 25% GF body materials
  • Suitable for use in low voltage applications up to 80Vdc

Table

iMaXX ref. Color Rating [A] Voltage [V]
F1801 Black 1 80
F1802 Gray 2 80
F1803 Violet 3 80
F1804 Pink 4 80
F1805 Tan 5 80
F1875 Brown 7.5 80
F1810 Red 10 80
F1815 Blue 15 80
F1820 Yellow 20 80
F1825 Natural 25 80
F1830 Green 30 80
F1840 Orange 40 80



Dimensions

normOTO Fuse F1800 Product Drawing

Downloads

PDF Drawings

F1800 drawing
