midiOTO MDP compatible with Holder HMD1, MDA and HMD$-MG1 Series
MDP030 Orange fuse (option M6 available)
MDP040 Green Fuse (option M6 available)
MDP050 Red Fuse (option M6 available)
MDP060 Yellow Fuse (option M6 available)
MDP070 Brown Fuse (option M6 available)
MDP080 White Fuse (option M6 available)
MDP100 Blue Fuse (option M6 available)
MDP125 Pink Fuse (option M6 available)
MDP150 M6 Gray Fuse
MDP175 M6 Light Brown Fuse
MDP200 M6 Violet Fuse
midiOTO MDP compatible with Holder HMD1, MDA and HMD$-MG1 Series
MDP030 Orange fuse (option M6 available)
MDP040 Green Fuse (option M6 available)
MDP050 Red Fuse (option M6 available)
MDP060 Yellow Fuse (option M6 available)
MDP070 Brown Fuse (option M6 available)
MDP080 White Fuse (option M6 available)
MDP100 Blue Fuse (option M6 available)
MDP125 Pink Fuse (option M6 available)
MDP150 M6 Gray Fuse
MDP175 M6 Light Brown Fuse
MDP200 M6 Violet Fuse

midiOTO Fuse MDP

  • Meets international specs, complies to ISO 8820-5, JASO D612 and other standards
  • Element visibility through viewing window
  • PA6T housing, heat & chemical resistant
  • Rigid Sn-plated Cu-alloy blades
  • Color coded housing, marked with amperage rating
  • M5 connection holes for 30A – 125A, spaced 30mm
  • M6 connection holes for 150A – 200A, spaced 30mm
  • Mounting torque 4.5Nm ± 1 Nm
SKU: MDP030, MDP040, MDP050, MDP060, MDP070, MDP080,MDP100 MDP125, MDP030M6, MDP040M6, MDP050M6, MDP060M6, MDP070M6, MDP080M6, MDP100M6, MDP125M6, MDP150M6, MDP175M6, MDP200M6 Category:

Description

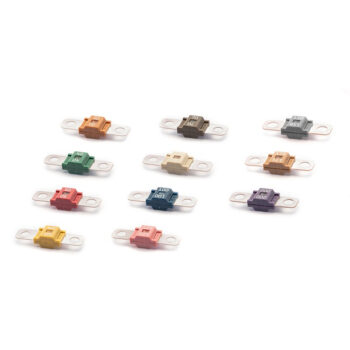

MDP series, midiOTO bolt-on fusemidiOTO Fuse MDP Collection

  • Meets international specs, complies to ISO 8820-5, JASO D612 and other standards
  • Element visibility through viewing window
  • PA6T housing, heat & chemical resistant
  • Rigid Sn-plated Cu-alloy blades
  • Color coded housing, marked with amperage rating
  • M5 connection holes for 30A – 125A, spaced 30mm
  • M6 connection holes for 150A – 200A, spaced 30mm
  • Mounting torque 4.5Nm ± 1 Nm

Table



iMaXX ref. Color Rating [A] Voltage [V]
MDP030 orange 30 58
MDP040 green 40 58
MDP050 red 50 58
MDP060 yellow 60 58
MDP070 brown 70 58
MDP080 white 80 58
MDP100 blue 100 58
MDP125 pink 125 58
MDP030M6 orange 30 58
MDP040M6 green 40 58
MDP050M6 red 50 58
MDP060M6 yellow 60 58
MDP070M6 brown 70 58
MDP080M6 white 80 58
MDP100M6 blue 100 58
MDP125M6 pink 125 58
MDP150M6 gray 150 58
MDP175M6 light brown 175 58
MDP200M6 violet 200 58



Dimensions

midiOTO Fuse MDP Product Drawing

Downloads

PDF Drawings

MDP series drawing
MDP-M6 series drawing
