You are here: Home / FUSE HOLDERS / Crimp Connect / maxiOTO holder H9120

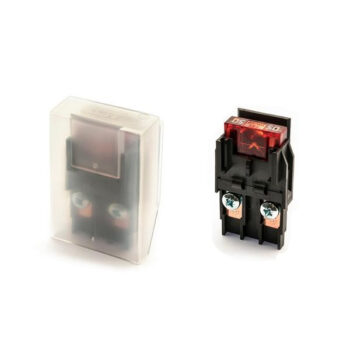

maxiOTO holder H9120 print. replacement to: 01520900H | 01520900TXN | 01520900U | 01520001TXN | 01520001U | 8JD 743 708-001 | 01520001TXN940 | 01520001TXN941
H9120
maxiOTO holder H9120 compatible with Fuse maxiOTO F9000
maxiOTO holder H9120 cover
maxiOTO holder H9120 print. replacement to: 01520900H | 01520900TXN | 01520900U | 01520001TXN | 01520001U | 8JD 743 708-001 | 01520001TXN940 | 01520001TXN941
H9120
maxiOTO holder H9120 compatible with Fuse maxiOTO F9000
maxiOTO holder H9120 cover

maxiOTO holder H9120

  • Suits 2.5 mm² – 10mm² cable
  • UL 94 V0 body material
  • PA 66 GF25 body material
  • Robust cable interface, ring terminal screw connections
  • Stackable, to create multi-position holder
  • Clear cover optional
  • Also available in kit form
SKU: H9125maxiOTO kit, H9120, H9105, CCX906QL, CCX910QL Category: Crimp Connect Tags: 01520001TXN, 01520001TXN940, 01520001TXN941, 01520001U, 01520900H, 01520900TXN, 01520900U, 8JD 743 708-001
  • Bullets
  • Table
  • Dimensions
  • Downloads

Description

H9120 series, maxiOTO holder maxiOTO holder H9120 Collection

  • Suits 2.5 mm² – 10mm² cable
  • UL 94 V0 body material
  • PA 66 GF25 body material
  • Robust cable interface, ring terminal screw connections
  • Stackable, to create multi-position holder
  • Clear cover optional
  • Also available in kit form

Table



iMaXX ref. Description
H9125maxiOTO kit Incl. holder, cover, 2x each ring terminal
H9120 FH maxiOTO PA 66 screw connect 1p
H9105 FH maxiOTO cover 1p, for H9120
CCX906QL ring terminal DIN 5-6B, 6mm²
CCX910QL ring terminal DIN 5-10B, 10mm²



Dimensions





maxiOTO holder H9120 Product Drawing

Downloads

PDF Drawings

H9120 series drawing
H9105 cover drawing

Related products

  • maxiOTO Fuse F9000, Blade with variants: F9020, F9025, F9030, F9040 F9050, F9060, F9070, F9080 and F9100

    maxiOTO Fuse F9000

    Read more
